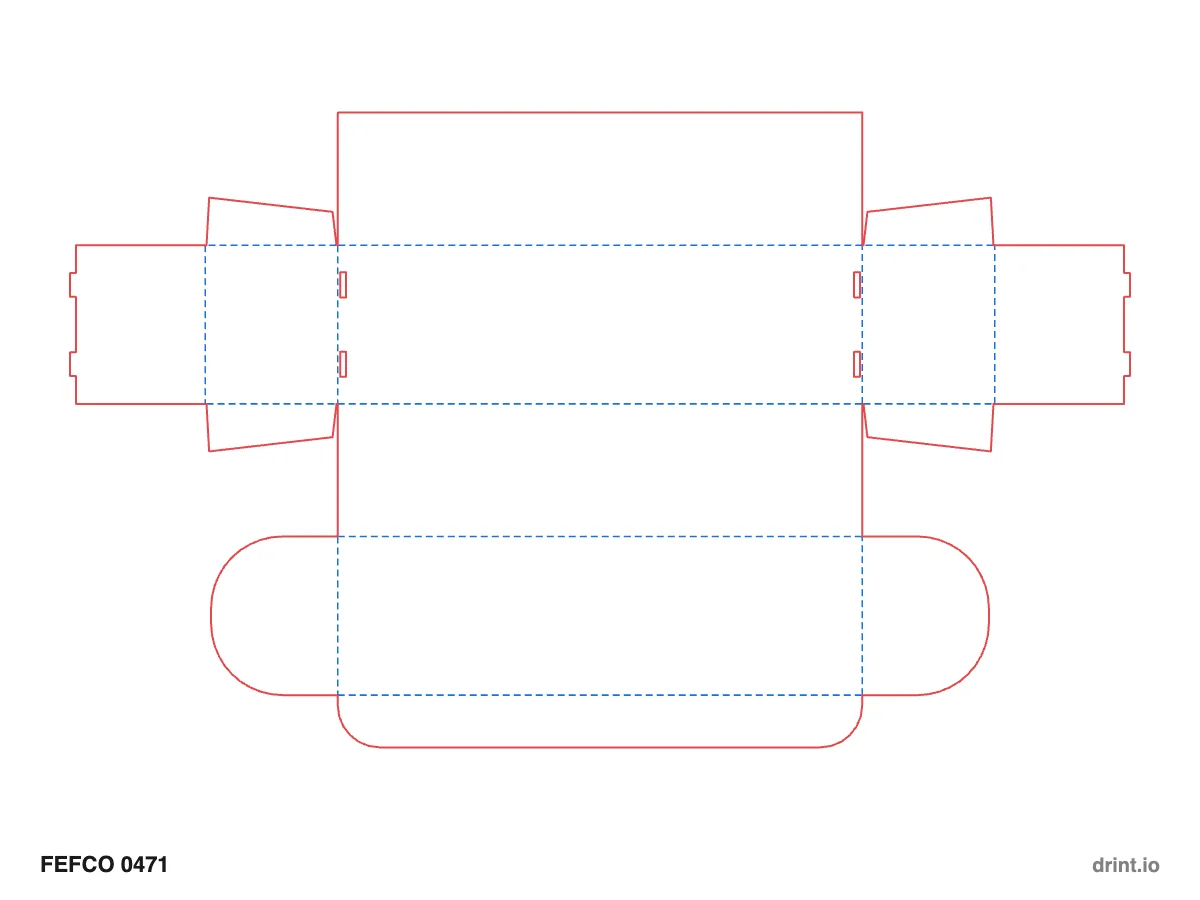

FEFCO 0471 — Long self-locking box, rounded lid ears
FEFCO 0471 is a long one-piece self-locking box whose lid ears are rounded. Drint draws it close to the FEFCO drawing. Drint draws a free FEFCO 0471 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- FEFCO 0471
- Standard
- FEFCO — corrugated board
- Group
- FEFCO 04 · One-piece folders and trays
- Drawn at
- 400 × 120 × 100 mm
- Flat sheet
- 812 × 486 mm
- Drawing
- Close to the code’s drawing, not exact
In Claude or ChatGPT, add the Drint connector (drint.io/mcp) and ask: “FEFCO 0471 dieline, 300 × 200 × 100 mm, PDF”.
Board
Corrugated board: E or B flute for retail and mailers, C or double wall (BC) for shipping and heavy goods.
Questions
What is FEFCO 0471?
FEFCO 0471 is a long one-piece self-locking box whose lid ears are rounded. Drint draws it close to the FEFCO drawing.
How do I get a FEFCO 0471 dieline at my size?
Open it in Drint and type your length, width and height — inside, on the crease or outside. The die is redrawn at that size with the board’s thickness allowed for, and you design straight on it. In Claude or ChatGPT with the Drint connector, ask for “FEFCO 0471 dieline” and your size.
What board is FEFCO 0471 made from?
Corrugated board: E or B flute for retail and mailers, C or double wall (BC) for shipping and heavy goods.
Is the FEFCO 0471 dieline free?
Designing on the die, the 3D fold and preflight are free in the browser. A free account downloads 3 dielines a month as PDF / AI or SVG. Unlimited dielines, DXF and CF2 for the die-maker, and the CMYK print PDF need Pro.
Is Drint’s FEFCO 0471 exactly the FEFCO drawing?
Not exactly: Drint draws this code close to the FEFCO drawing. Check the die with your die-maker before production.
