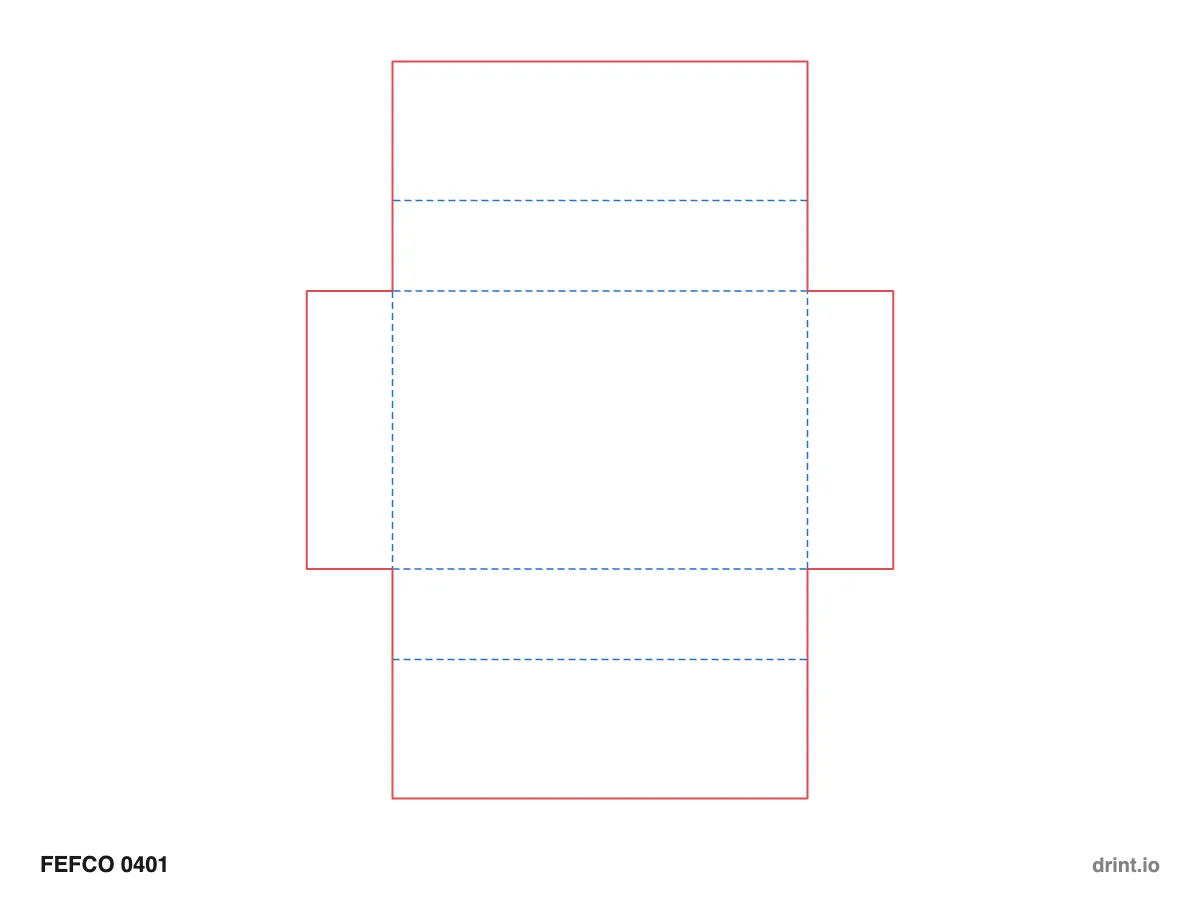

FEFCO 0401 — One-piece wrap folder, two lid flaps
FEFCO 0401 is a single sheet that wraps around the product, with two lid flaps meeting in the middle. It is used for books, flat items and catalogues. Drint draws a free FEFCO 0401 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- FEFCO 0401
- Standard
- FEFCO — corrugated board
- Group
- FEFCO 04 · One-piece folders and trays
- Drawn at
- 300 × 200 × 60 mm
- Flat sheet
- 428 × 538 mm
- Drawing
- Follows the code’s drawing
In Claude or ChatGPT, add the Drint connector (drint.io/mcp) and ask: “FEFCO 0401 dieline, 300 × 200 × 100 mm, PDF”.
Board
Corrugated board: E or B flute for retail and mailers, C or double wall (BC) for shipping and heavy goods.
Questions
What is FEFCO 0401?
FEFCO 0401 is a single sheet that wraps around the product, with two lid flaps meeting in the middle. It is used for books, flat items and catalogues.
How do I get a FEFCO 0401 dieline at my size?
Open it in Drint and type your length, width and height — inside, on the crease or outside. The die is redrawn at that size with the board’s thickness allowed for, and you design straight on it. In Claude or ChatGPT with the Drint connector, ask for “FEFCO 0401 dieline” and your size.
What board is FEFCO 0401 made from?
Corrugated board: E or B flute for retail and mailers, C or double wall (BC) for shipping and heavy goods.
Is the FEFCO 0401 dieline free?
Designing on the die, the 3D fold and preflight are free in the browser. A free account downloads 3 dielines a month as PDF / AI or SVG. Unlimited dielines, DXF and CF2 for the die-maker, and the CMYK print PDF need Pro.
