ECMA A20.40.03.03 — Winged tuck top · tuck bottom · same side

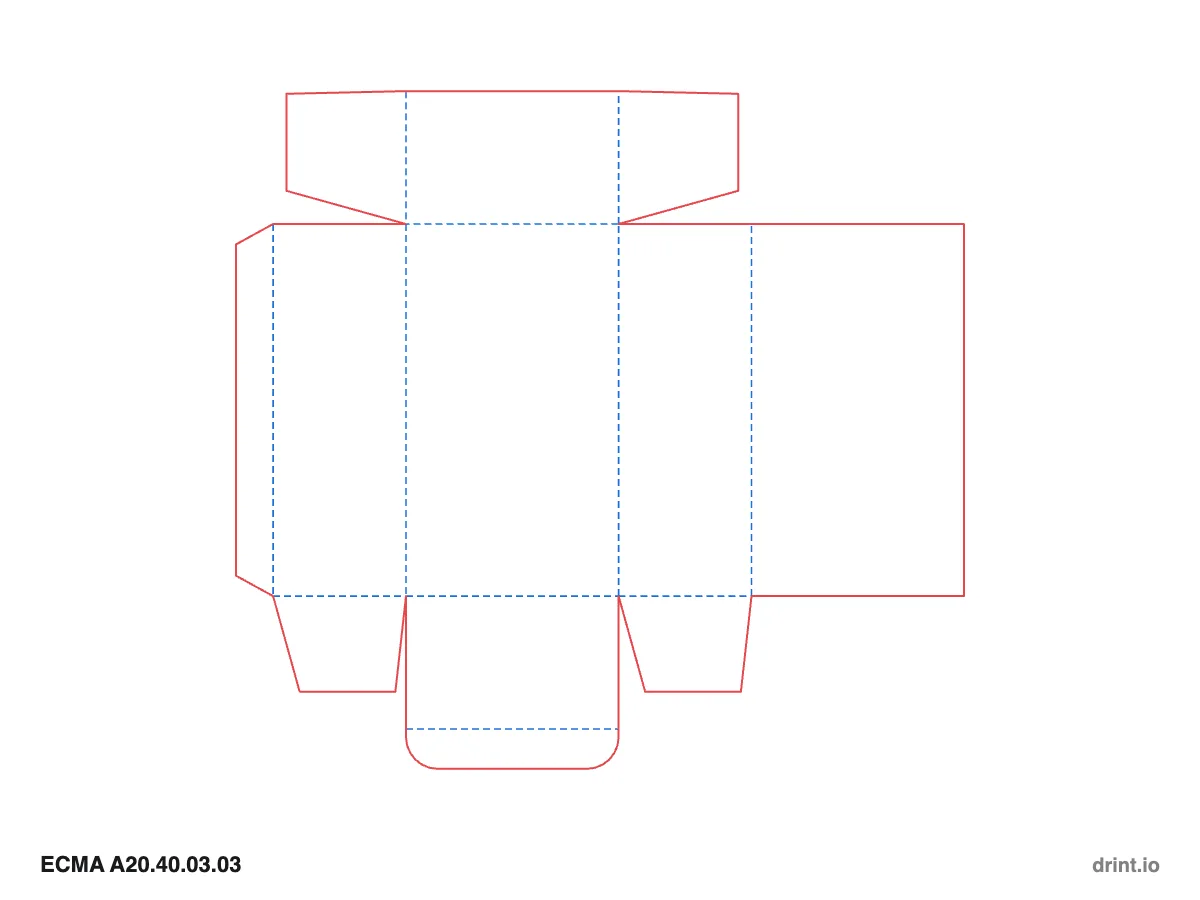

ECMA A20.40.03.03 is a folding carton (ECMA A-series) whose top is a tuck with winged side flaps and whose bottom is a tuck-in flap, both hinged on the same panel. A tuck bottom suits light products — cosmetics, cards, small electronics — and is folded by hand. Drint draws a free ECMA A20.40.03.03 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- ECMA A20.40.03.03
- Standard
- ECMA — folding carton
- Group
- ECMA A20 · Tuck bottom
- Drawn at
- 80 × 50 × 140 mm
- Flat sheet
- 274 × 255 mm
- Drawing
- Follows the code’s drawing
In Claude or ChatGPT, add the Drint connector (drint.io/mcp) and ask: “ECMA A20.40.03.03 dieline, 300 × 200 × 100 mm, PDF”.
Board
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Questions
What is ECMA A20.40.03.03?
ECMA A20.40.03.03 is a folding carton (ECMA A-series) whose top is a tuck with winged side flaps and whose bottom is a tuck-in flap, both hinged on the same panel. A tuck bottom suits light products — cosmetics, cards, small electronics — and is folded by hand.
How do I get a ECMA A20.40.03.03 dieline at my size?
Open it in Drint and type your length, width and height — inside, on the crease or outside. The die is redrawn at that size with the board’s thickness allowed for, and you design straight on it. In Claude or ChatGPT with the Drint connector, ask for “ECMA A20.40.03.03 dieline” and your size.
What board is ECMA A20.40.03.03 made from?
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Is the ECMA A20.40.03.03 dieline free?
Designing on the die, the 3D fold and preflight are free in the browser. A free account downloads 3 dielines a month as PDF / AI or SVG. Unlimited dielines, DXF and CF2 for the die-maker, and the CMYK print PDF need Pro.
