ECMA A20.10.03.03 — Glued full-overlap top · tuck bottom · same side

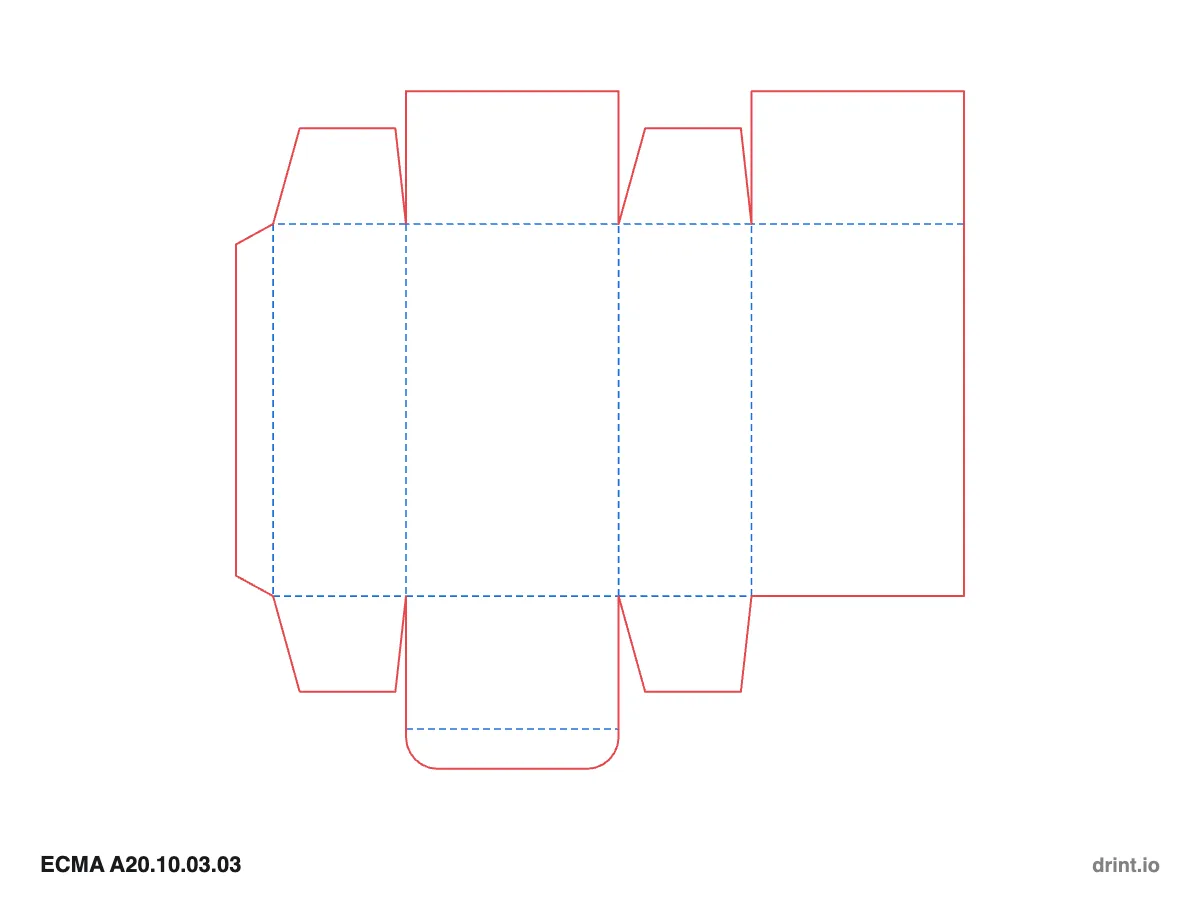

ECMA A20.10.03.03 is a folding carton (ECMA A-series) whose top is closed by full-overlap glued flaps and whose bottom is a tuck-in flap, both hinged on the same panel. A tuck bottom suits light products — cosmetics, cards, small electronics — and is folded by hand. Drint draws a free ECMA A20.10.03.03 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- ECMA A20.10.03.03
- Standard
- ECMA — folding carton
- Group
- ECMA A20 · Tuck bottom
- Drawn at
- 80 × 50 × 140 mm
- Flat sheet
- 274 × 255 mm
- Drawing
- Follows the code’s drawing
