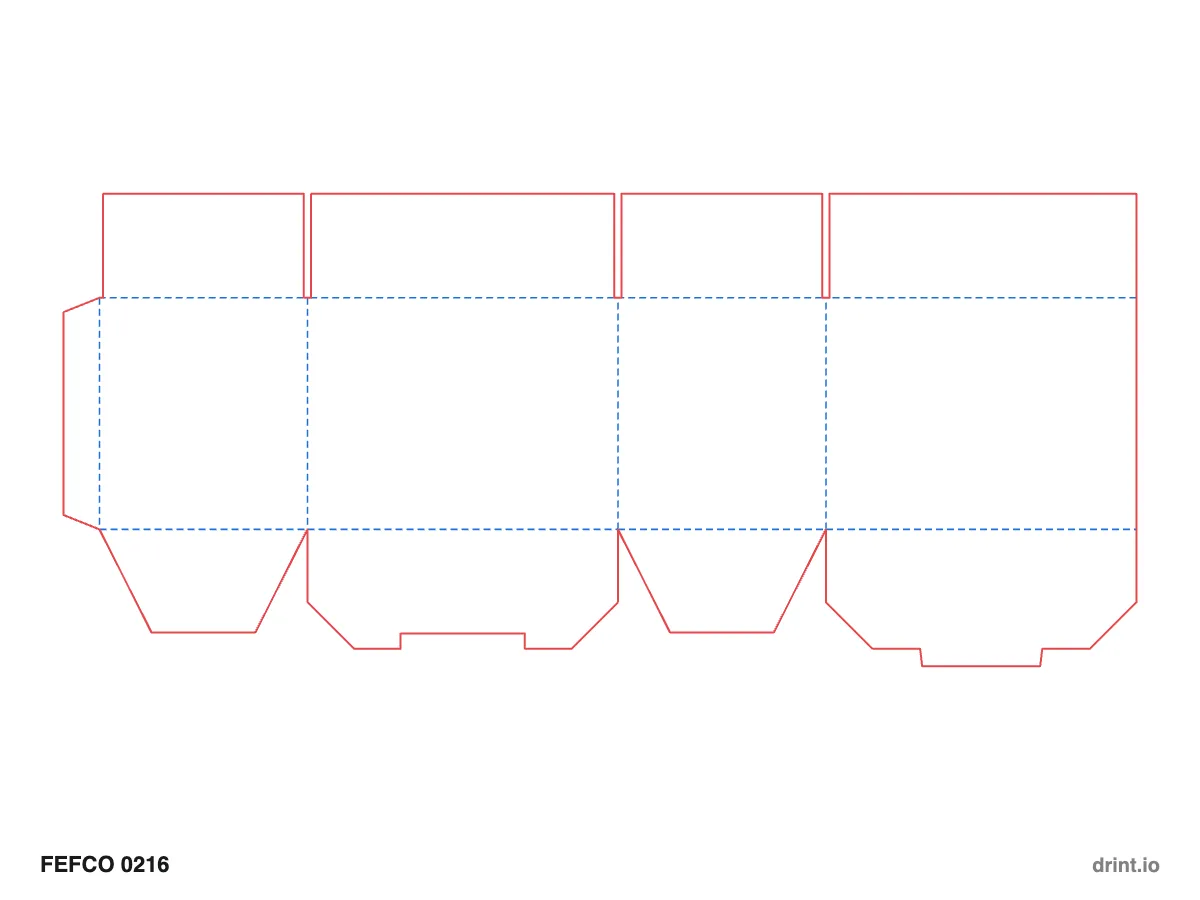

FEFCO 0216 — Regular slotted top, snap lock bottom
FEFCO 0216 is a corrugated carton with regular slotted flaps on top and a 1-2-3 snap lock bottom. Drint draws a free FEFCO 0216 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- FEFCO 0216
- Standard
- FEFCO — corrugated board
- Group
- FEFCO 02 · Slotted cartons
- Drawn at
- 300 × 200 × 220 mm
- Flat sheet
- 1047 × 461 mm
- Drawing
- Follows the code’s drawing
In Claude or ChatGPT, add the Drint connector (drint.io/mcp) and ask: “FEFCO 0216 dieline, 300 × 200 × 100 mm, PDF”.
Board
Corrugated board: E or B flute for retail and mailers, C or double wall (BC) for shipping and heavy goods.
Questions
What is FEFCO 0216?
FEFCO 0216 is a corrugated carton with regular slotted flaps on top and a 1-2-3 snap lock bottom.
How do I get a FEFCO 0216 dieline at my size?
Open it in Drint and type your length, width and height — inside, on the crease or outside. The die is redrawn at that size with the board’s thickness allowed for, and you design straight on it. In Claude or ChatGPT with the Drint connector, ask for “FEFCO 0216 dieline” and your size.
What board is FEFCO 0216 made from?
Corrugated board: E or B flute for retail and mailers, C or double wall (BC) for shipping and heavy goods.
Is the FEFCO 0216 dieline free?
Designing on the die, the 3D fold and preflight are free in the browser. A free account downloads 3 dielines a month as PDF / AI or SVG. Unlimited dielines, DXF and CF2 for the die-maker, and the CMYK print PDF need Pro.
