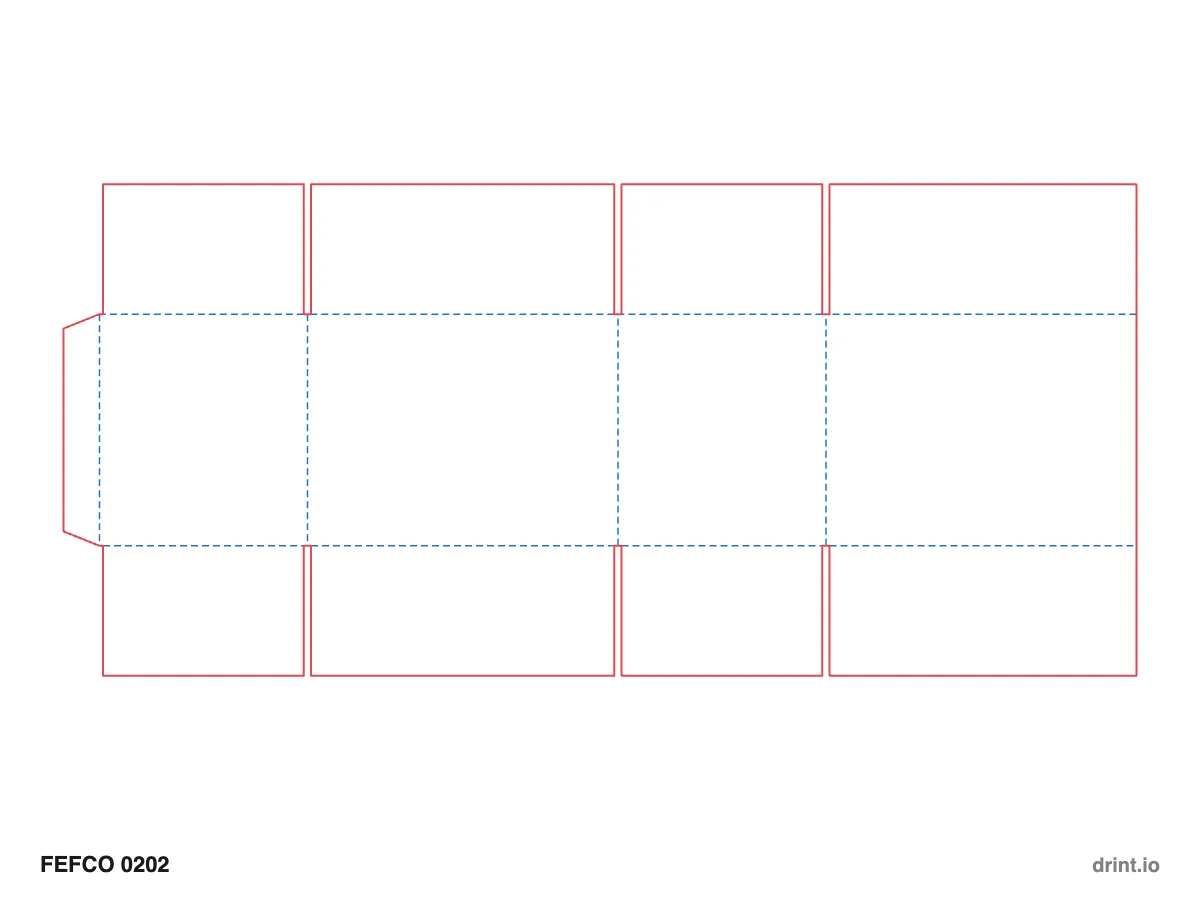

FEFCO 0202 — Overlap slotted container (OSC)
FEFCO 0202 is a regular slotted carton whose outer flaps overlap part of the way instead of meeting in the middle. The overlap adds strength and makes taping easier. Drint draws a free FEFCO 0202 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- FEFCO 0202
- Standard
- FEFCO — corrugated board
- Group
- FEFCO 02 · Slotted cartons
- Drawn at
- 300 × 200 × 220 mm
- Flat sheet
- 1047 × 480 mm
- Drawing
- Follows the code’s drawing
In Claude or ChatGPT, add the Drint connector (drint.io/mcp) and ask: “FEFCO 0202 dieline, 300 × 200 × 100 mm, PDF”.
Board
Corrugated board: E or B flute for retail and mailers, C or double wall (BC) for shipping and heavy goods.
Questions
What is FEFCO 0202?
FEFCO 0202 is a regular slotted carton whose outer flaps overlap part of the way instead of meeting in the middle. The overlap adds strength and makes taping easier.
How do I get a FEFCO 0202 dieline at my size?
Open it in Drint and type your length, width and height — inside, on the crease or outside. The die is redrawn at that size with the board’s thickness allowed for, and you design straight on it. In Claude or ChatGPT with the Drint connector, ask for “FEFCO 0202 dieline” and your size.
What board is FEFCO 0202 made from?
Corrugated board: E or B flute for retail and mailers, C or double wall (BC) for shipping and heavy goods.
Is the FEFCO 0202 dieline free?
Designing on the die, the 3D fold and preflight are free in the browser. A free account downloads 3 dielines a month as PDF / AI or SVG. Unlimited dielines, DXF and CF2 for the die-maker, and the CMYK print PDF need Pro.
