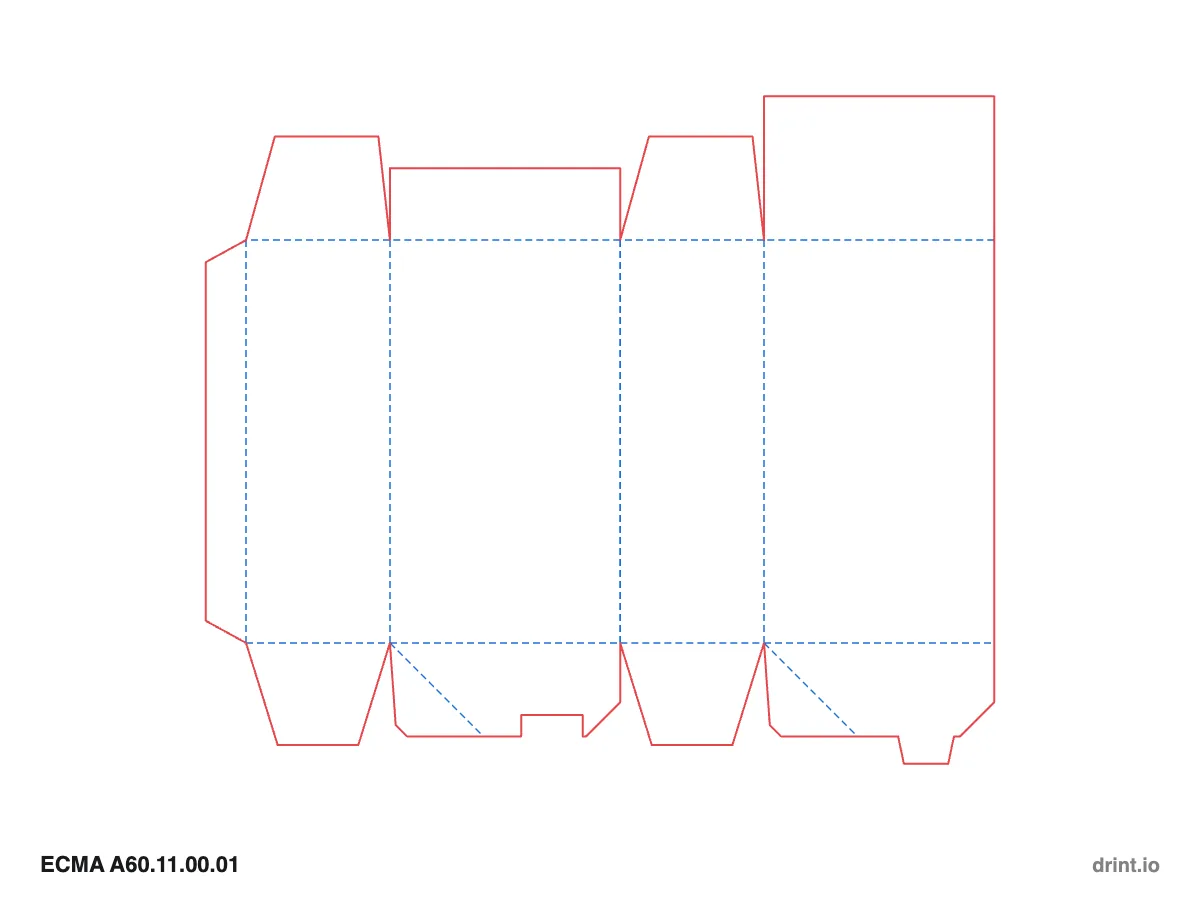

ECMA A60.11.00.01 — Glued reduced-flap top · crash lock (auto) bottom · top on back panel
ECMA A60.11.00.01 is a folding carton (ECMA A-series) whose top is closed by glued flaps, one long and one short and whose bottom is a crash lock (auto bottom). The crash lock bottom is pre-glued: the carton pops open with its bottom already locked, so it is the fastest to pack and carries heavier products. Drint draws a free ECMA A60.11.00.01 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- ECMA A60.11.00.01
- Standard
- ECMA — folding carton
- Group
- ECMA A60 · Crash lock (auto) bottom
- Drawn at
- 80 × 50 × 140 mm
- Flat sheet
- 274 × 232 mm
- Drawing
- Follows the code’s drawing
In Claude or ChatGPT, add the Drint connector (drint.io/mcp) and ask: “ECMA A60.11.00.01 dieline, 300 × 200 × 100 mm, PDF”.
Board
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Questions
What is ECMA A60.11.00.01?
ECMA A60.11.00.01 is a folding carton (ECMA A-series) whose top is closed by glued flaps, one long and one short and whose bottom is a crash lock (auto bottom). The crash lock bottom is pre-glued: the carton pops open with its bottom already locked, so it is the fastest to pack and carries heavier products.
How do I get a ECMA A60.11.00.01 dieline at my size?
Open it in Drint and type your length, width and height — inside, on the crease or outside. The die is redrawn at that size with the board’s thickness allowed for, and you design straight on it. In Claude or ChatGPT with the Drint connector, ask for “ECMA A60.11.00.01 dieline” and your size.
What board is ECMA A60.11.00.01 made from?
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Is the ECMA A60.11.00.01 dieline free?
Designing on the die, the 3D fold and preflight are free in the browser. A free account downloads 3 dielines a month as PDF / AI or SVG. Unlimited dielines, DXF and CF2 for the die-maker, and the CMYK print PDF need Pro.
