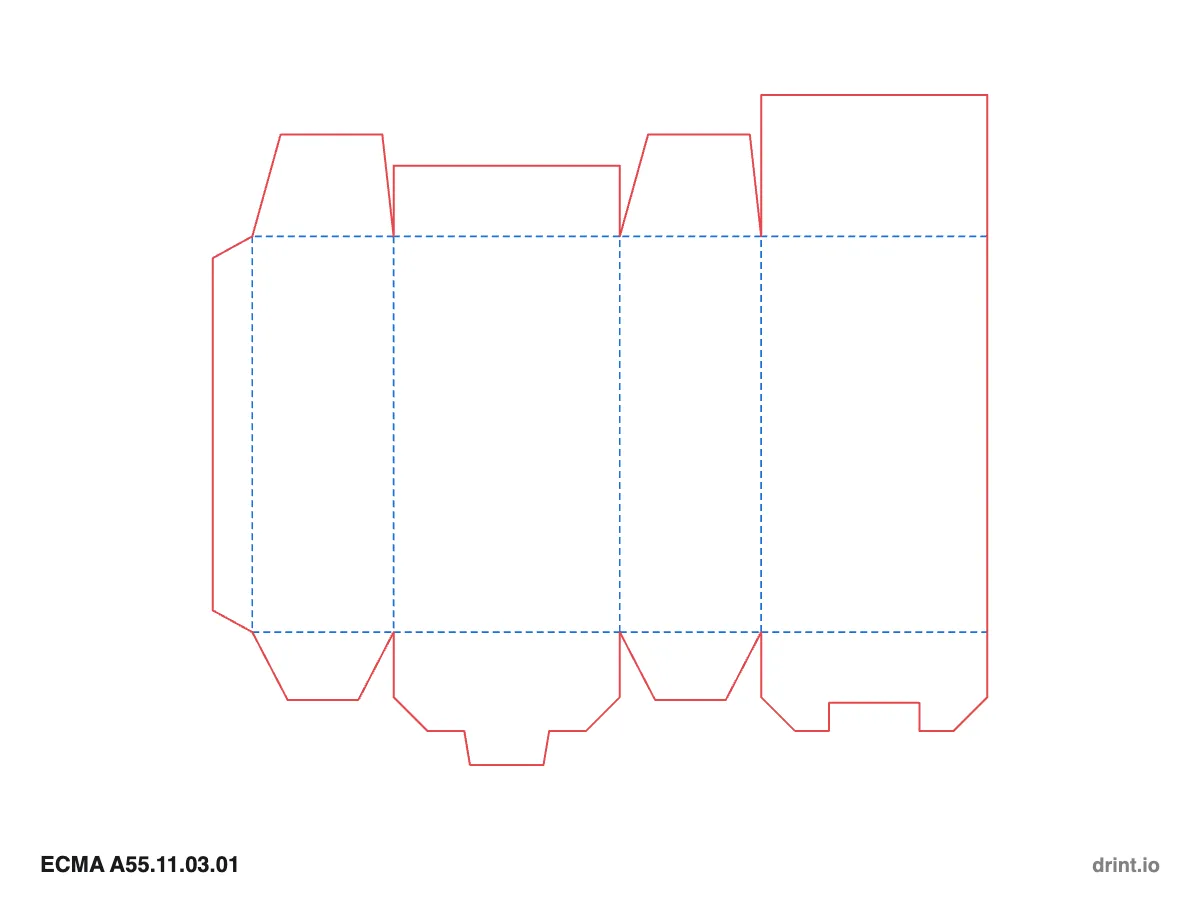

ECMA A55.11.03.01 — Glued reduced-flap top · snap lock (1-2-3) bottom · opposite sides
ECMA A55.11.03.01 is a folding carton (ECMA A-series) whose top is closed by glued flaps, one long and one short and whose bottom is a 1-2-3 snap lock, hinged on opposite panels. The 1-2-3 snap lock bottom is folded by hand without glue and carries medium-weight products such as bottles and jars. Drint draws a free ECMA A55.11.03.01 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- ECMA A55.11.03.01
- Standard
- ECMA — folding carton
- Group
- ECMA A55 · Snap lock (1-2-3) bottom
- Drawn at
- 80 × 50 × 140 mm
- Flat sheet
- 274 × 237 mm
- Drawing
- Follows the code’s drawing
