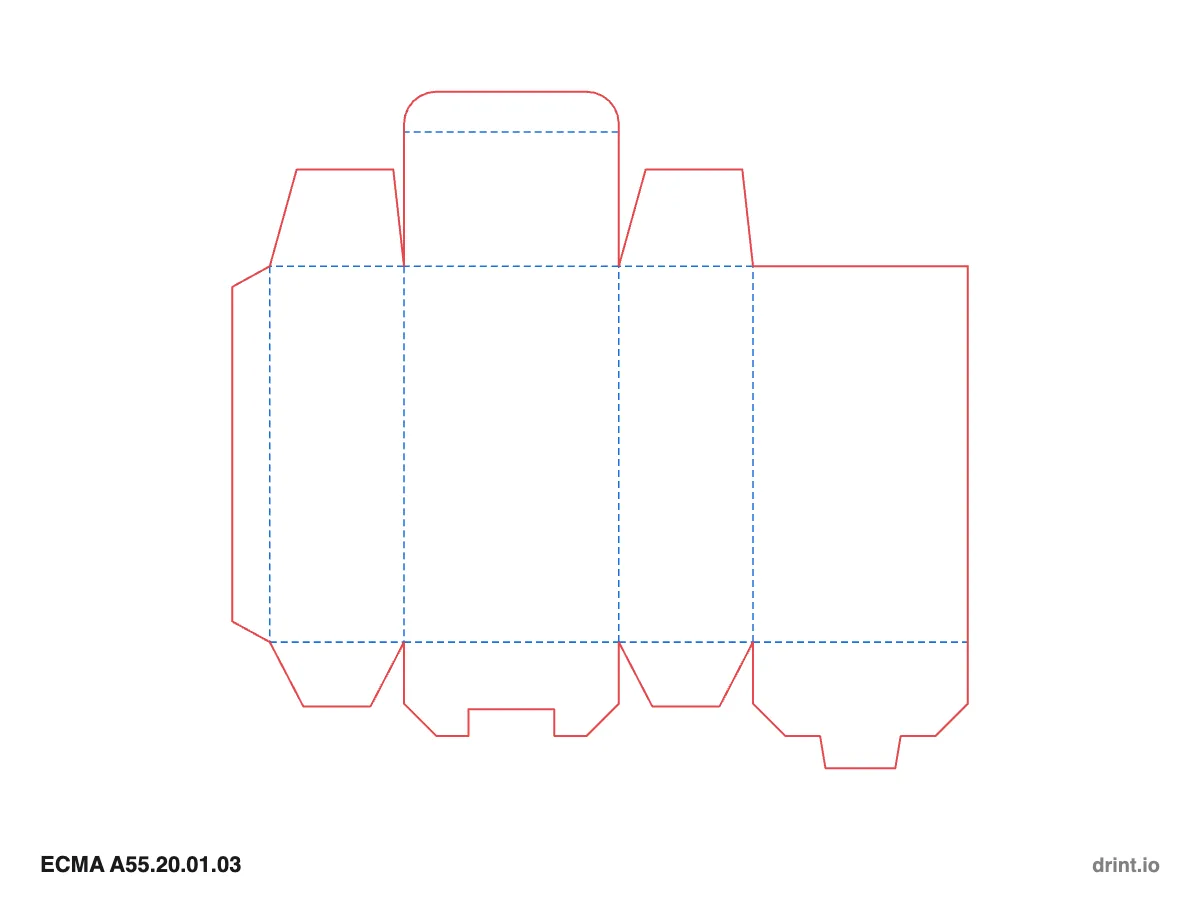

ECMA A55.20.01.03 — Tuck top · snap lock (1-2-3) bottom · opposite sides
ECMA A55.20.01.03 is a folding carton (ECMA A-series) whose top is a tuck-in flap and whose bottom is a 1-2-3 snap lock, hinged on opposite panels — in the trade, a tuck to back snap lock base. The 1-2-3 snap lock bottom is folded by hand without glue and carries medium-weight products such as bottles and jars. Drint draws a free ECMA A55.20.01.03 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- ECMA A55.20.01.03
- Standard
- ECMA — folding carton
- Group
- ECMA A55 · Snap lock (1-2-3) bottom
- Drawn at
- 80 × 50 × 140 mm
- Flat sheet
- 274 × 252 mm
- Also called
- Tuck To Back Snap Lock Base · A410 · A5520 · FC0105
- Drawing
- Follows the code’s drawing
In Claude or ChatGPT, add the Drint connector (drint.io/mcp) and ask: “ECMA A55.20.01.03 dieline, 300 × 200 × 100 mm, PDF”.
Board
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Questions
What is ECMA A55.20.01.03?
ECMA A55.20.01.03 is a folding carton (ECMA A-series) whose top is a tuck-in flap and whose bottom is a 1-2-3 snap lock, hinged on opposite panels — in the trade, a tuck to back snap lock base. The 1-2-3 snap lock bottom is folded by hand without glue and carries medium-weight products such as bottles and jars.
How do I get a ECMA A55.20.01.03 dieline at my size?
Open it in Drint and type your length, width and height — inside, on the crease or outside. The die is redrawn at that size with the board’s thickness allowed for, and you design straight on it. In Claude or ChatGPT with the Drint connector, ask for “ECMA A55.20.01.03 dieline” and your size.
What board is ECMA A55.20.01.03 made from?
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Is the ECMA A55.20.01.03 dieline free?
Designing on the die, the 3D fold and preflight are free in the browser. A free account downloads 3 dielines a month as PDF / AI or SVG. Unlimited dielines, DXF and CF2 for the die-maker, and the CMYK print PDF need Pro.
