ECMA A10.20.03.01 — Tuck top · glued full-overlap bottom · opposite sides

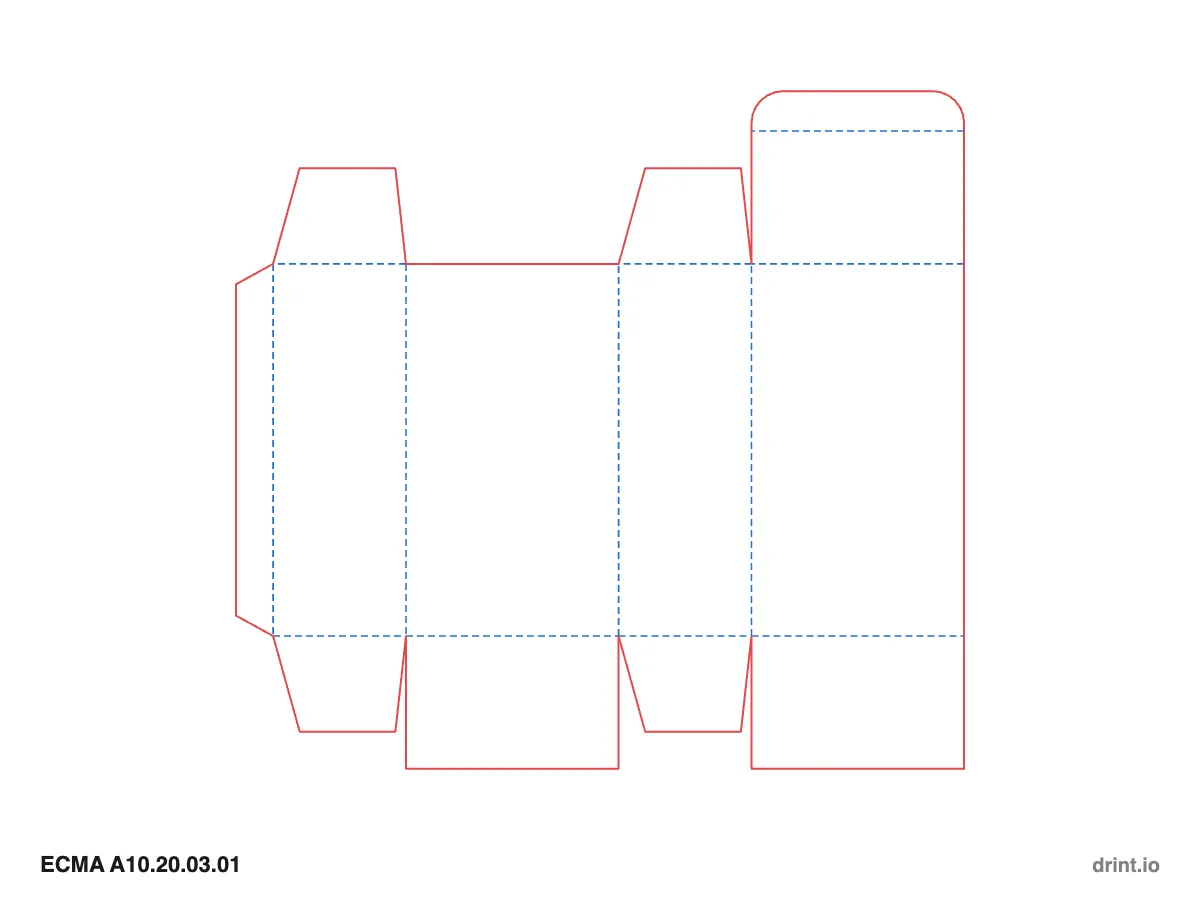

ECMA A10.20.03.01 is a folding carton (ECMA A-series) whose top is a tuck-in flap and whose bottom is closed by full-overlap glued flaps, hinged on opposite panels. The glued full-overlap bottom is sealed on the gluing line and carries heavier contents than a tuck. Drint draws a free ECMA A10.20.03.01 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- ECMA A10.20.03.01
- Standard
- ECMA — folding carton
- Group
- ECMA A10, A11 · Glued flap bottom
- Drawn at
- 80 × 50 × 140 mm
- Flat sheet
- 274 × 255 mm
- Drawing
- Follows the code’s drawing
In Claude or ChatGPT, add the Drint connector (drint.io/mcp) and ask: “ECMA A10.20.03.01 dieline, 300 × 200 × 100 mm, PDF”.
Board
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Questions
What is ECMA A10.20.03.01?
ECMA A10.20.03.01 is a folding carton (ECMA A-series) whose top is a tuck-in flap and whose bottom is closed by full-overlap glued flaps, hinged on opposite panels. The glued full-overlap bottom is sealed on the gluing line and carries heavier contents than a tuck.
How do I get a ECMA A10.20.03.01 dieline at my size?
Open it in Drint and type your length, width and height — inside, on the crease or outside. The die is redrawn at that size with the board’s thickness allowed for, and you design straight on it. In Claude or ChatGPT with the Drint connector, ask for “ECMA A10.20.03.01 dieline” and your size.
What board is ECMA A10.20.03.01 made from?
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Is the ECMA A10.20.03.01 dieline free?
Designing on the die, the 3D fold and preflight are free in the browser. A free account downloads 3 dielines a month as PDF / AI or SVG. Unlimited dielines, DXF and CF2 for the die-maker, and the CMYK print PDF need Pro.
