Dielines › Dielines by standard code › ECMA A01.21.00.01

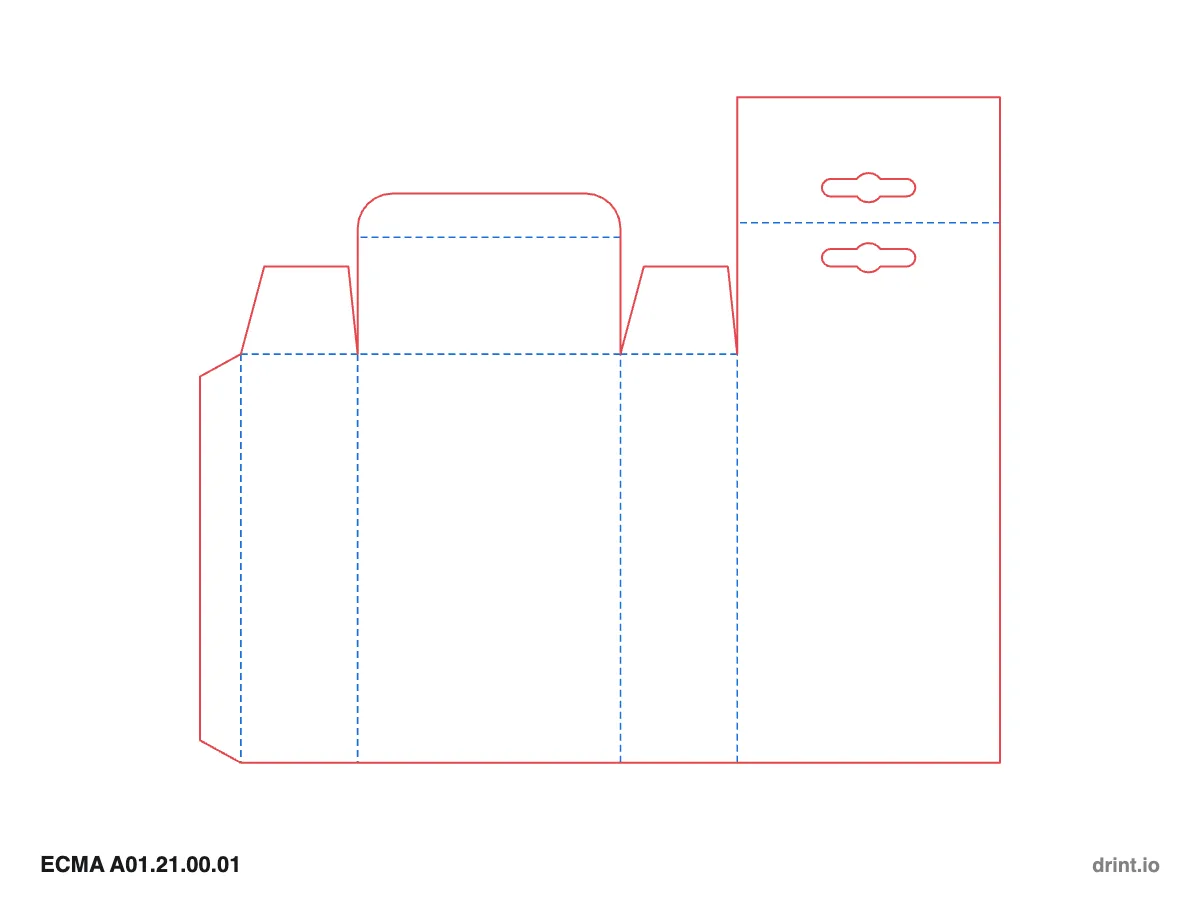

ECMA A01.21.00.01 — Tuck with hang tab top · open bottom · top on back panel
ECMA A01.21.00.01 is a folding carton (ECMA A-series) whose top is a tuck-in flap with a hang tab and whose bottom is open. An open bottom makes it a sleeve or tube: it slides over a tray or a product, or is closed by a separate insert. The hang tab lets it hang on a retail peg hook. Drint draws a free ECMA A01.21.00.01 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- ECMA A01.21.00.01
- Standard
- ECMA — folding carton
- Group
- ECMA A01 · Open bottom (sleeves, tubes)
- Drawn at
- 90 × 40 × 140 mm
- Flat sheet
- 274 × 228 mm
- Drawing
- Follows the code’s drawing
In Claude or ChatGPT, add the Drint connector (drint.io/mcp) and ask: “ECMA A01.21.00.01 dieline, 300 × 200 × 100 mm, PDF”.
Board
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Questions
What is ECMA A01.21.00.01?
ECMA A01.21.00.01 is a folding carton (ECMA A-series) whose top is a tuck-in flap with a hang tab and whose bottom is open. An open bottom makes it a sleeve or tube: it slides over a tray or a product, or is closed by a separate insert. The hang tab lets it hang on a retail peg hook.
How do I get a ECMA A01.21.00.01 dieline at my size?
Open it in Drint and type your length, width and height — inside, on the crease or outside. The die is redrawn at that size with the board’s thickness allowed for, and you design straight on it. In Claude or ChatGPT with the Drint connector, ask for “ECMA A01.21.00.01 dieline” and your size.
What board is ECMA A01.21.00.01 made from?
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Is the ECMA A01.21.00.01 dieline free?
Designing on the die, the 3D fold and preflight are free in the browser. A free account downloads 3 dielines a month as PDF / AI or SVG. Unlimited dielines, DXF and CF2 for the die-maker, and the CMYK print PDF need Pro.
