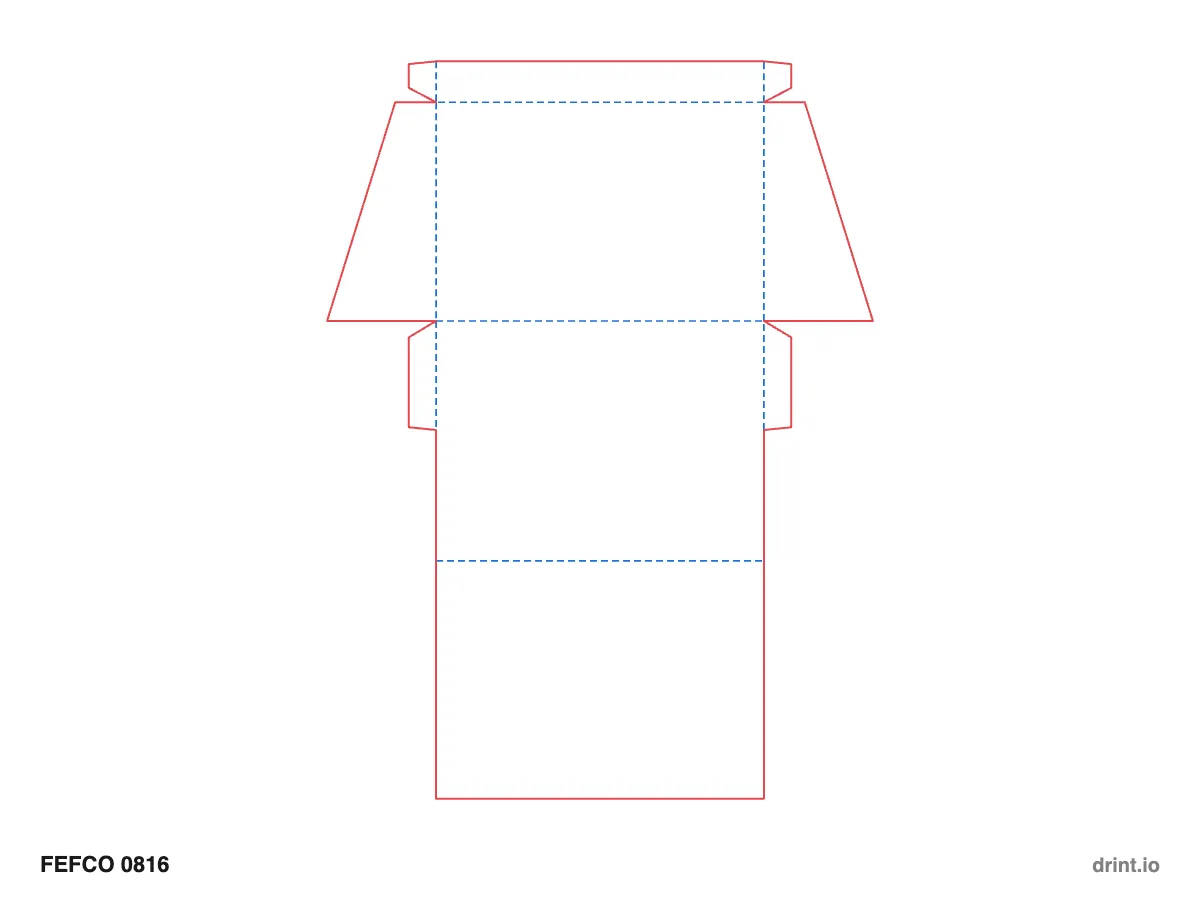

FEFCO 0816 — Display box with reinforced walls
FEFCO 0816 is a corrugated display box whose walls are reinforced. Drint draws it close to the FEFCO drawing. Drint draws a free FEFCO 0816 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- FEFCO 0816
- Standard
- FEFCO — corrugated board
- Group
- FEFCO 08, 09 · Displays and dividers
- Drawn at
- 240 × 160 × 80 mm
- Flat sheet
- 401 × 541 mm
- Drawing
- Close to the code’s drawing, not exact
In Claude or ChatGPT, add the Drint connector (drint.io/mcp) and ask: “FEFCO 0816 dieline, 300 × 200 × 100 mm, PDF”.
Board
Corrugated board: E or B flute for retail and mailers, C or double wall (BC) for shipping and heavy goods.
Questions
What is FEFCO 0816?
FEFCO 0816 is a corrugated display box whose walls are reinforced. Drint draws it close to the FEFCO drawing.
How do I get a FEFCO 0816 dieline at my size?
Open it in Drint and type your length, width and height — inside, on the crease or outside. The die is redrawn at that size with the board’s thickness allowed for, and you design straight on it. In Claude or ChatGPT with the Drint connector, ask for “FEFCO 0816 dieline” and your size.
What board is FEFCO 0816 made from?
Corrugated board: E or B flute for retail and mailers, C or double wall (BC) for shipping and heavy goods.
Is the FEFCO 0816 dieline free?
Designing on the die, the 3D fold and preflight are free in the browser. A free account downloads 3 dielines a month as PDF / AI or SVG. Unlimited dielines, DXF and CF2 for the die-maker, and the CMYK print PDF need Pro.
Is Drint’s FEFCO 0816 exactly the FEFCO drawing?
Not exactly: Drint draws this code close to the FEFCO drawing. Check the die with your die-maker before production.
