ECMA A55.21.01.01 — Tuck with hang tab top · snap lock (1-2-3) bottom · same side

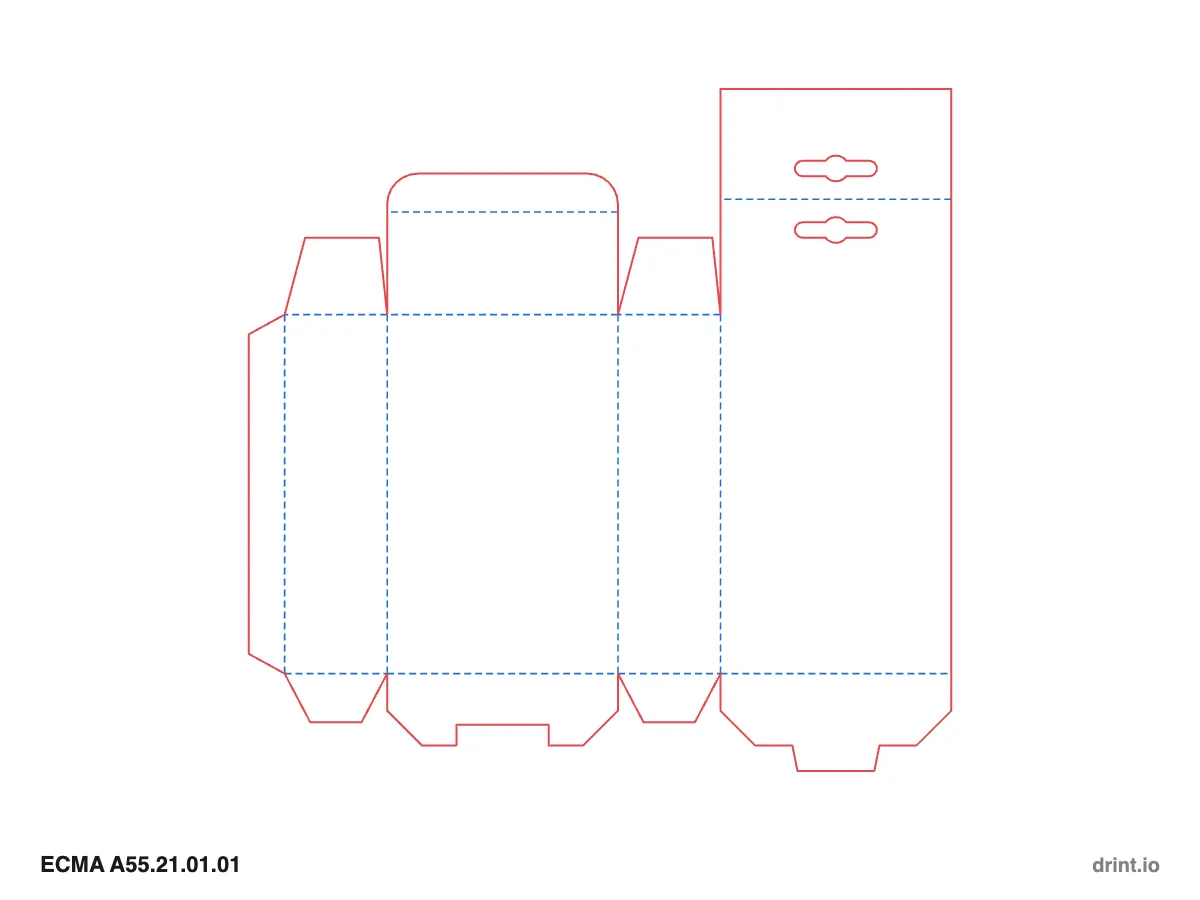

ECMA A55.21.01.01 is a folding carton (ECMA A-series) whose top is a tuck-in flap with a hang tab and whose bottom is a 1-2-3 snap lock, both hinged on the same panel. The 1-2-3 snap lock bottom is folded by hand without glue and carries medium-weight products such as bottles and jars. The hang tab lets it hang on a retail peg hook. Drint draws a free ECMA A55.21.01.01 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- ECMA A55.21.01.01
- Standard
- ECMA — folding carton
- Group
- ECMA A55 · Snap lock (1-2-3) bottom
- Drawn at
- 90 × 40 × 140 mm
- Flat sheet
- 274 × 266 mm
- Drawing
- Follows the code’s drawing
In Claude or ChatGPT, add the Drint connector (drint.io/mcp) and ask: “ECMA A55.21.01.01 dieline, 300 × 200 × 100 mm, PDF”.
Board
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Questions
What is ECMA A55.21.01.01?
ECMA A55.21.01.01 is a folding carton (ECMA A-series) whose top is a tuck-in flap with a hang tab and whose bottom is a 1-2-3 snap lock, both hinged on the same panel. The 1-2-3 snap lock bottom is folded by hand without glue and carries medium-weight products such as bottles and jars. The hang tab lets it hang on a retail peg hook.
How do I get a ECMA A55.21.01.01 dieline at my size?
Open it in Drint and type your length, width and height — inside, on the crease or outside. The die is redrawn at that size with the board’s thickness allowed for, and you design straight on it. In Claude or ChatGPT with the Drint connector, ask for “ECMA A55.21.01.01 dieline” and your size.
What board is ECMA A55.21.01.01 made from?
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Is the ECMA A55.21.01.01 dieline free?
Designing on the die, the 3D fold and preflight are free in the browser. A free account downloads 3 dielines a month as PDF / AI or SVG. Unlimited dielines, DXF and CF2 for the die-maker, and the CMYK print PDF need Pro.
