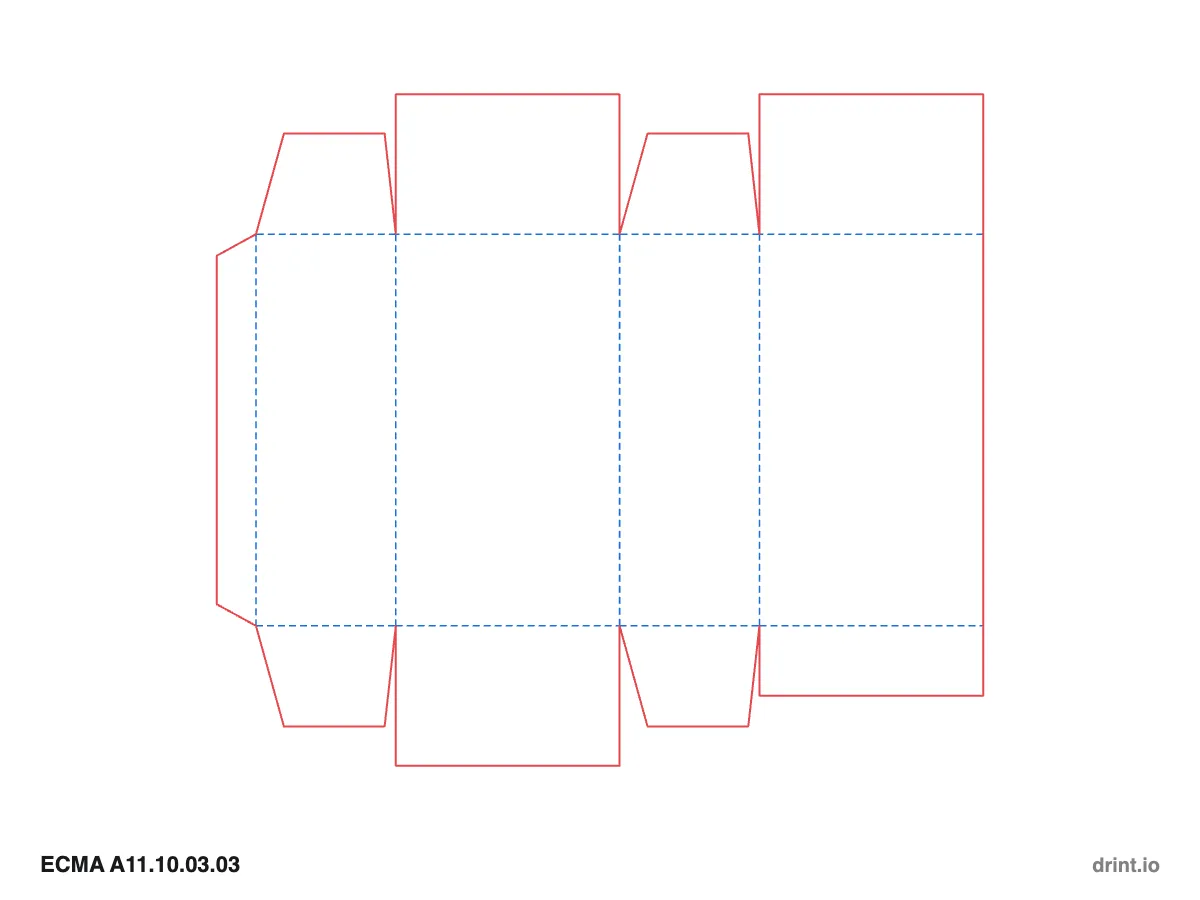

ECMA A11.10.03.03 — Glued full-overlap top · glued reduced-flap bottom · same side
ECMA A11.10.03.03 is a folding carton (ECMA A-series) whose top is closed by full-overlap glued flaps and whose bottom is closed by glued flaps, one long and one short, both hinged on the same panel. The glued bottom with one long and one short flap is sealed on the gluing line and saves board. Drint draws a free ECMA A11.10.03.03 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- ECMA A11.10.03.03
- Standard
- ECMA — folding carton
- Group
- ECMA A10, A11 · Glued flap bottom
- Drawn at
- 80 × 50 × 140 mm
- Flat sheet
- 274 × 240 mm
- Drawing
- Follows the code’s drawing
In Claude or ChatGPT, add the Drint connector (drint.io/mcp) and ask: “ECMA A11.10.03.03 dieline, 300 × 200 × 100 mm, PDF”.
Board
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Questions
What is ECMA A11.10.03.03?
ECMA A11.10.03.03 is a folding carton (ECMA A-series) whose top is closed by full-overlap glued flaps and whose bottom is closed by glued flaps, one long and one short, both hinged on the same panel. The glued bottom with one long and one short flap is sealed on the gluing line and saves board.
How do I get a ECMA A11.10.03.03 dieline at my size?
Open it in Drint and type your length, width and height — inside, on the crease or outside. The die is redrawn at that size with the board’s thickness allowed for, and you design straight on it. In Claude or ChatGPT with the Drint connector, ask for “ECMA A11.10.03.03 dieline” and your size.
What board is ECMA A11.10.03.03 made from?
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Is the ECMA A11.10.03.03 dieline free?
Designing on the die, the 3D fold and preflight are free in the browser. A free account downloads 3 dielines a month as PDF / AI or SVG. Unlimited dielines, DXF and CF2 for the die-maker, and the CMYK print PDF need Pro.
