ECMA A11.01.03.00 — Open top · glued reduced-flap bottom · bottom on front panel

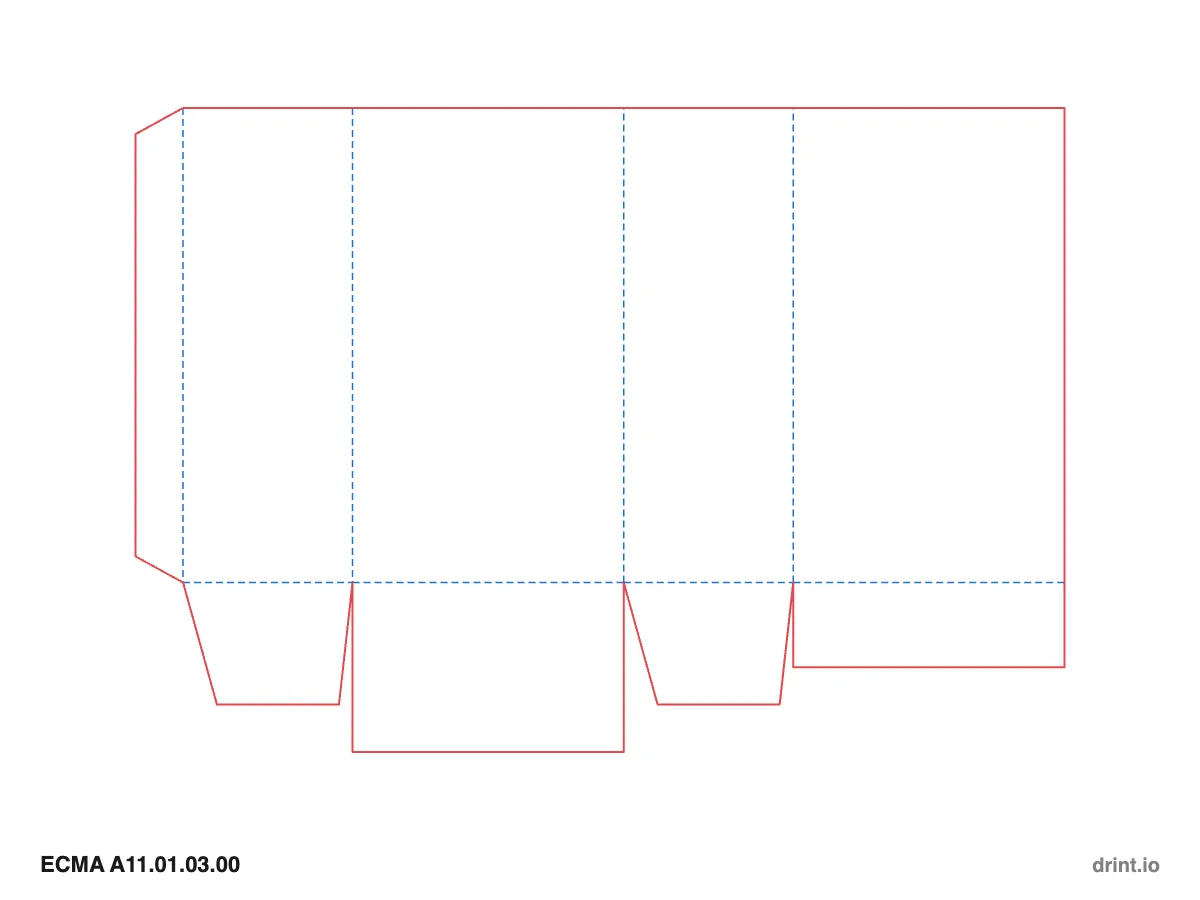

ECMA A11.01.03.00 is a folding carton (ECMA A-series) whose top is open and whose bottom is closed by glued flaps, one long and one short. The glued bottom with one long and one short flap is sealed on the gluing line and saves board. Drint draws a free ECMA A11.01.03.00 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- ECMA A11.01.03.00
- Standard
- ECMA — folding carton
- Group
- ECMA A10, A11 · Glued flap bottom
- Drawn at
- 80 × 50 × 140 mm
- Flat sheet
- 274 × 190 mm
- Drawing
- Follows the code’s drawing
