ECMA A40.11.03.03 — Glued reduced-flap top · winged tuck bottom · same side

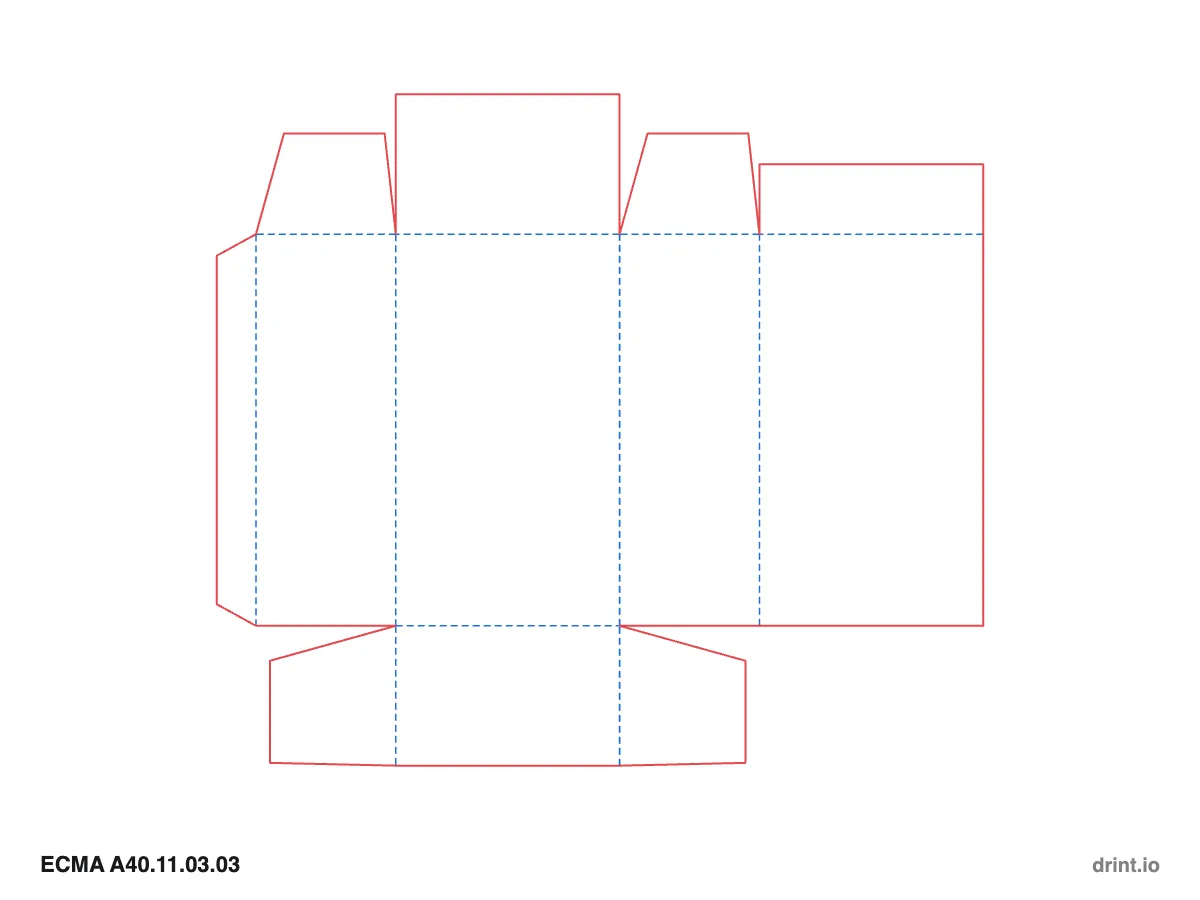

ECMA A40.11.03.03 is a folding carton (ECMA A-series) whose top is closed by glued flaps, one long and one short and whose bottom is a tuck with winged side flaps, both hinged on the same panel. The winged tuck holds more firmly than a plain tuck, for products that should not slip out. Drint draws a free ECMA A40.11.03.03 dieline at any size: type the length, width and height and design on it, or download it as PDF or SVG.
- Code
- ECMA A40.11.03.03
- Standard
- ECMA — folding carton
- Group
- ECMA A40 · Winged tuck bottom
- Drawn at
- 80 × 50 × 140 mm
- Flat sheet
- 274 × 240 mm
- Drawing
- Follows the code’s drawing
In Claude or ChatGPT, add the Drint connector (drint.io/mcp) and ask: “ECMA A40.11.03.03 dieline, 300 × 200 × 100 mm, PDF”.
Board
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Questions
What is ECMA A40.11.03.03?
ECMA A40.11.03.03 is a folding carton (ECMA A-series) whose top is closed by glued flaps, one long and one short and whose bottom is a tuck with winged side flaps, both hinged on the same panel. The winged tuck holds more firmly than a plain tuck, for products that should not slip out.
How do I get a ECMA A40.11.03.03 dieline at my size?
Open it in Drint and type your length, width and height — inside, on the crease or outside. The die is redrawn at that size with the board’s thickness allowed for, and you design straight on it. In Claude or ChatGPT with the Drint connector, ask for “ECMA A40.11.03.03 dieline” and your size.
What board is ECMA A40.11.03.03 made from?
Folding boxboard (GC1, GC2, SBS) from about 250 to 400 g/m², or a light E flute for heavier products.
Is the ECMA A40.11.03.03 dieline free?
Designing on the die, the 3D fold and preflight are free in the browser. A free account downloads 3 dielines a month as PDF / AI or SVG. Unlimited dielines, DXF and CF2 for the die-maker, and the CMYK print PDF need Pro.
